Farrowing pens and huts. Pics please?

misfitmorgan

Herd Master
Joined
Feb 26, 2016
Messages
3,726
Reaction score
7,002
Points
423
Location
Northern Lower Michigan
There is a difference between 4h pigs and breeding pigs. Breeding pigs get 400-600lbs and several years old....4h pigs usually are sold by 250lbs and 6 months old. 4h pigs are usually also made into barrows so no boars around. I will take a picture of what the pigs did to our chain link gate and of what they did to one of our other thick mesh panels when i get home from work. i dont know how your friend is keeping their pigs in chain link without electric or anything but i can tell you it will not work if they are already going thru hog panels and electric fence.

Your fencing in the pictures doesnt look thick enough to be hog panels for the picture showing the stump and the other damaged wire picture is definitely not hog panels. If you put up hog panels and 2-3 runs of hot wire, as someone mention before 4" apart.

There is a major flaw in that shelter for a pig.....pigs love to flip stuff over and roll it around and generally play with it, you have given them lovely 2x4 "handles" a convenient distance from the ground to do just that. Pigs have very strong necks because they are ment to dig and rut around in he dirt for their food. If you cant or dont want to do a porta-hut or the cinderblocks you can alternatively make a hog hut that is "hog proof." Make your hut pig enough for all three pigs to be in it at once comfortably if possible. Get 4x4 posts and plant them in the ground then attach 2x4 or 2x6 to the posts as close to the ground as you can but not touching unless your using treated wood. Put a few more 2x4s up the "walls" to make it all sturdy and solid. Then do the same on the inside of the posts which would be the inside of the shelter. Dig down in the ground 3-4" then put wood sheeting on the outside and inside 2x4s and make sure the sheeting goes all the way down to the bottom of the 3-4" trench you dug and that there are no edges of the sheeting sticking off that the pigs could easily get a hold of. Make a roof on top and they should not be able to tumble it over because they will have nothing to grab onto. Hopefully that makes sense...basically your making smooth walls without any 2x4s sticking out where the pigs can get them and burying the bottom edge of the sheeting a few inches so they cant get their nose under that easily.


misfitmorgan

Herd Master
Joined
Feb 26, 2016
Messages
3,726
Reaction score
7,002
Points
423
Location
Northern Lower Michigan
We made something very similar to this but with no floor or bottom part to the entrance. Bought all the materials from home depot, took about 2 hours. I can get a better picture when I get home.

View attachment 22547

This might be easier lol....only caution there is i see pigs ripping the tin off a lot but it depends on the pigs really. Once your girls farrow they will hopefully slow down on their destruction of things. If you could put the sprinkler idea into use it would help with boredom.... @babsbag wasnt that your idea the sprinkler on a timer?


mysunwolf

Herd Master
Joined
Nov 23, 2012
Messages
1,244
Reaction score
1,679
Points
343
Location
Southwest Virginia
We made something very similar to this but with no floor or bottom part to the entrance. Bought all the materials from home depot, took about 2 hours. I can get a better picture when I get home.

View attachment 22547

I would really love to see in-progress photos of building these! Where is the sheet metal attached, just at the base and the crest of the curve? Really beautiful shelters.


misfitmorgan

Herd Master
Joined
Feb 26, 2016
Messages
3,726
Reaction score
7,002
Points
423
Location
Northern Lower Michigan
@mysunwolf I have them saved somewhere, once I get home I'll find them and post it! It definitely takes two people but they've tried rolling it several times and never succeeded :celebrate

Definitely, how it's made photos are needed lol. They seem easier to build then how we planned on building all of ours for our rotation pastures.


Alexz7272

True BYH Addict
Joined
May 26, 2016
Messages
723
Reaction score
1,239
Points
293
Location
Longmont, Colorado
I promise I didn't forget! I got distracted by homework last night. I'll search my hard drive when I get home from the feed store!


Mini Horses

Herd Master
Joined
Sep 4, 2015
Messages
11,102
Reaction score
36,721
Points
758
Location
S coastal VA
Well, I use the KISS system as much as possible. So my pig huts are very basic but heavy. Used treated 2X6 bases & 2/4" plywood floor. Sides are T-111 & tops are Undura roofing panels from Lowe's. 2X4 framed corners & roof supports to nail to. Very large I hooks on bases so I can hook chains & pull or lift with loader on tractor to move. One has a more closed in front. Both gilts can get into them together and fully lay down. Ample room for straw beeding for farrowing and I can place a panel between them (the huts) to separate for couple weeks. Panels open onto3 cross fenced areas in a 1.5 acre field, so they can be rotated to graze.

I included a picture of the girls with a bag of green chop I had given them for the evening. They love it! Just mow & dump the bag.





Alexz7272

True BYH Addict
Joined
May 26, 2016
Messages
723
Reaction score
1,239
Points
293
Location
Longmont, Colorado
@mysunwolf

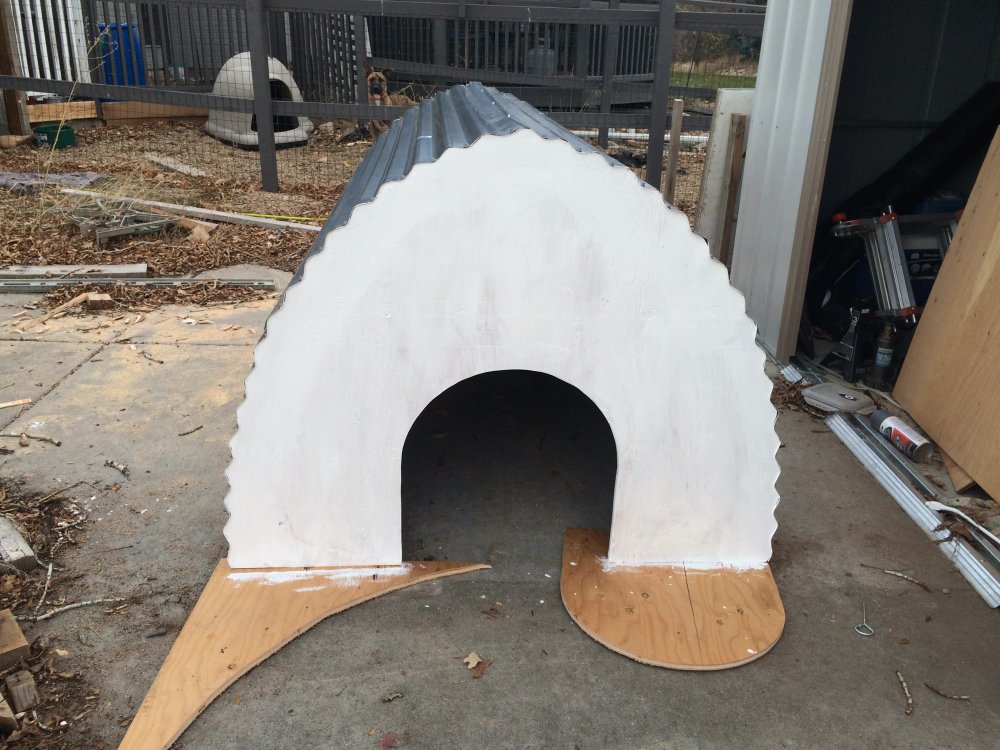

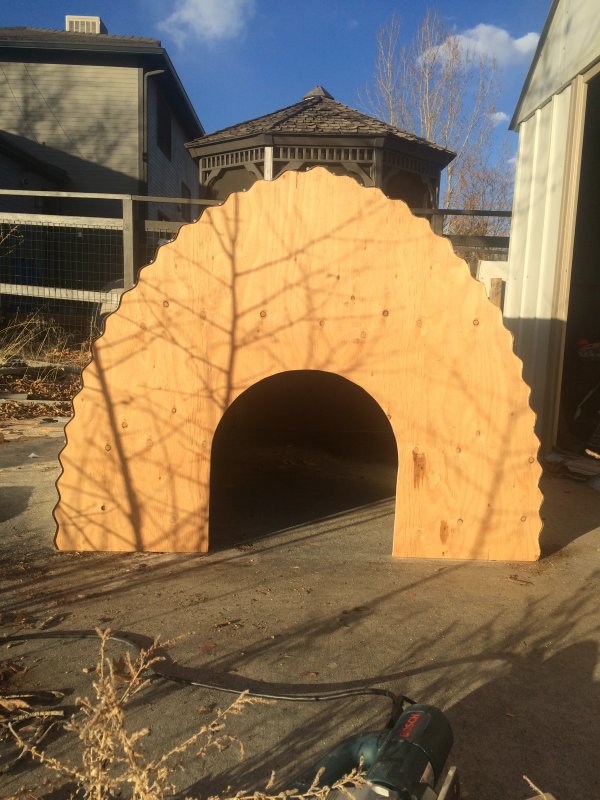

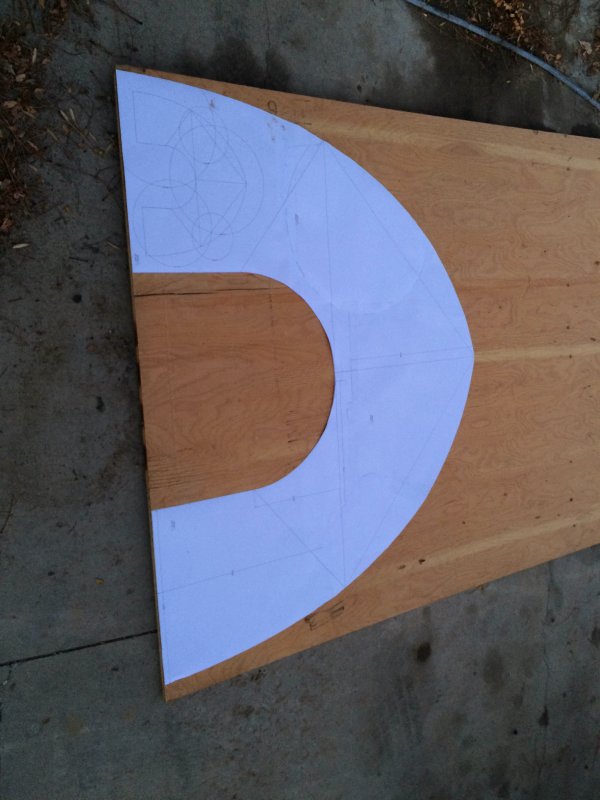

Okay, they may not be 100% in order, sorry!

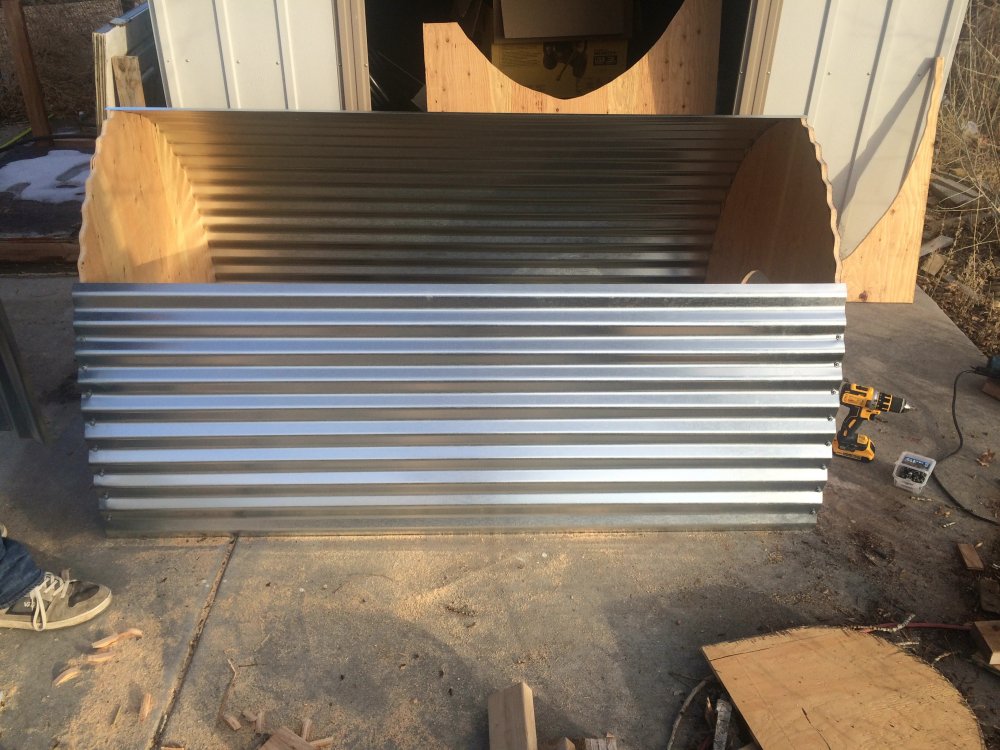

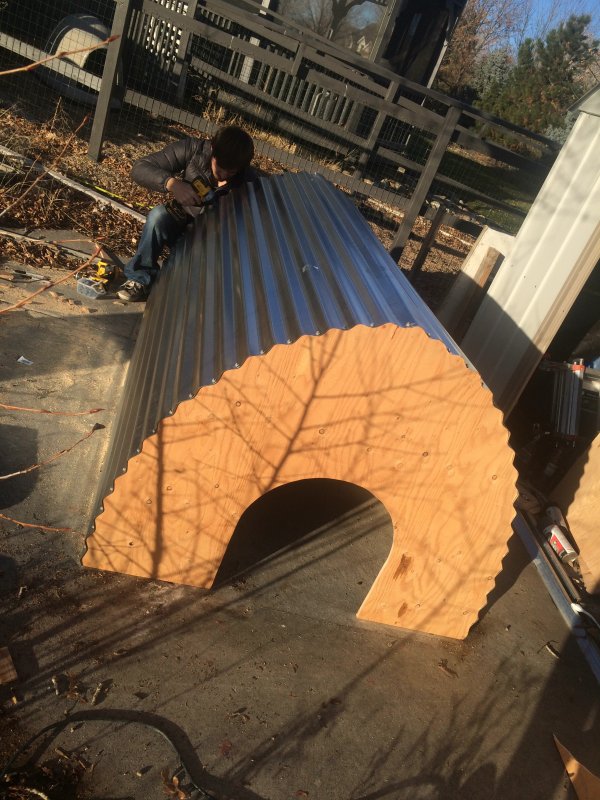

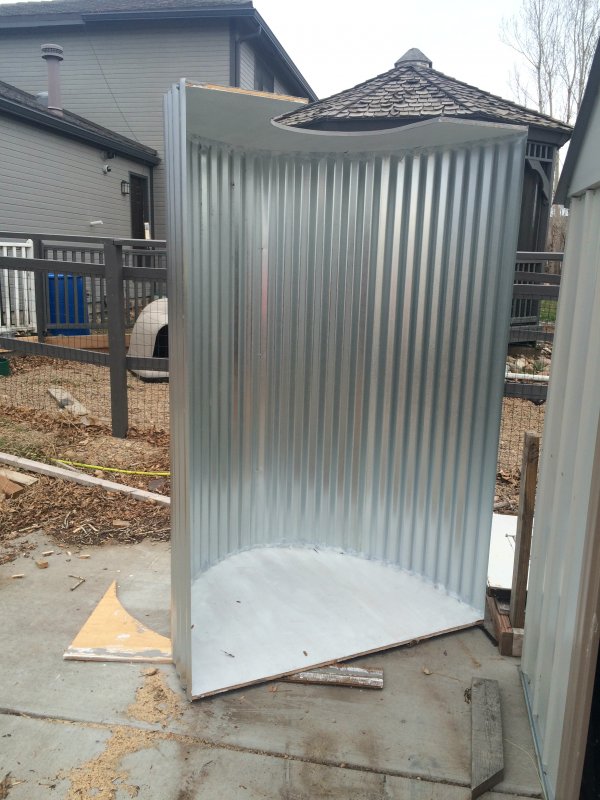

We used roofing screws to attached the panels to the wood. To avoid having to worry about majorly sealing, we made grooves in the plywood so it settled nicely. We did do some caulking on the inside seams to be extra safe the coated it in decking paint! :)

Random 310.JPG
Random 311.JPG
Random 489.JPG
Random 491.JPG
Random 492.JPG
Random 493.JPG
Random 494.JPG
Random 511.JPG
Random 512.JPG
Random 589.JPG
